Virtual Datacenters (vDC)
Virtual Datacenters are available in the Enterprise edition and are designed for MSP, IaaS, and multi-tenant platform use cases.
A virtual datacenter (vDC) is a self-service infrastructure boundary for a tenant. It combines Proxmox resource pools, placement rules, quotas, SDN networks, IPAM, and backup isolation into one tenant-facing workspace.
Providers keep a global view of the underlying Proxmox clusters, while tenants work from My vDC with only the resources assigned to them.
A vDC slices a shared cluster. If instead a tenant should own one or more entire clusters, use the MSP operating model described in Multi-Tenancy. The two models can coexist on the same instance.
What a vDC Contains
| Component | Purpose |
|---|---|
| Resource pool | Limits tenant visibility and placement to the tenant's assigned Proxmox pool |
| Quotas | Controls CPU, RAM, storage, snapshot, and backup consumption |
| Networks | Assigns SDN VNets, subnets, shared bridges, VLAN pools, and IP ranges to the tenant |
| IPAM | Reserves IP and MAC addresses during deploy, clone, restore, and network edits |
| Storage policies | Caps disk IOPS and bandwidth on a given storage, with an optional quota for that tier |
| Backups | Binds the vDC to a dedicated PBS namespace, token, ACL, and PVE storage target |
| Datacenter assignment | Links the vDC to the physical datacenter used for Green IT metrics |

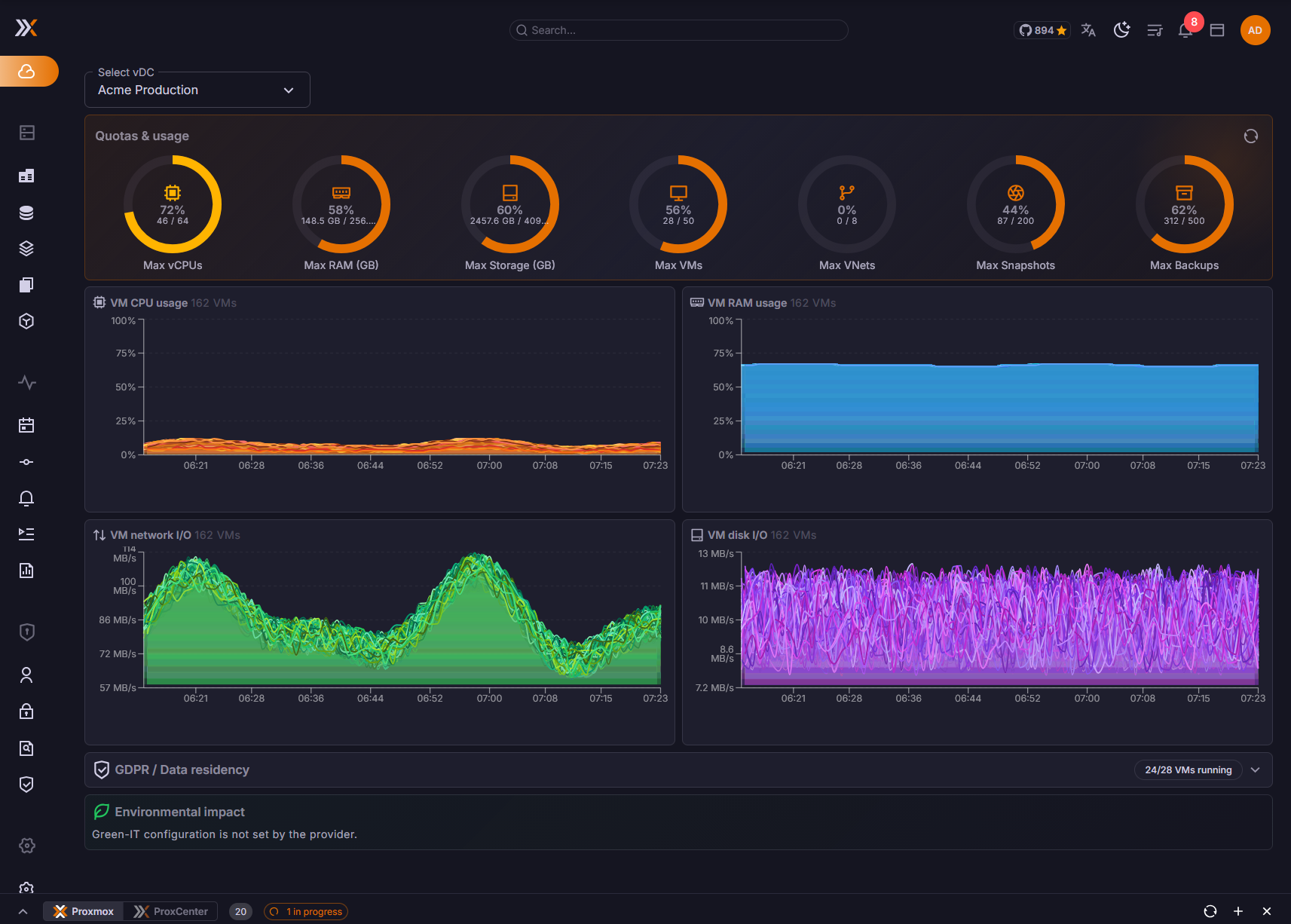

Tenant Cockpit
The My vDC page gives tenant users a live view of their own capacity and services:
- Host and VM consumption metrics
- CPU, RAM, storage, snapshot, and backup quota usage
- Datacenter map and placement context
- Green IT KPIs for energy, cost, and CO2 estimates
- Quick access to deploy, backup, restore, and manage assigned workloads
Tenant users do not need access to provider-wide settings or raw cluster administration to consume their allocated infrastructure.
Creating a vDC
Provider administrators create vDCs from the tenant management workflow:
- Create or select the tenant.
- Assign the tenant to a Proxmox pool or create the pool during setup.
- Define CPU, RAM, storage, snapshot, and backup quotas.
- Assign allowed nodes, storages, bridges, SDN VNets, and subnets.
- Optionally dedicate one or more VLAN pools to the vDC, so its users can build their own VLAN networks.
- Optionally attach one or more storage policies, each with its own tier quota.
- Bind a PBS namespace automatically or configure it manually.
- Assign the vDC to a datacenter for Green IT calculations.
- Invite tenant users and grant the roles they need.
Use one vDC per customer, project, or isolated environment. A tenant can have multiple users, but each user's visibility remains constrained by tenant and vDC scope.
Several vDCs per Tenant
A tenant is not limited to a single vDC. It can hold one vDC per cluster, so a tenant that consumes two shared clusters ends up with one vDC on each. A second vDC for the same tenant on the same cluster is rejected.
To add another vDC, run the creation workflow again from Settings > Virtual Datacenters and pick a different cluster. Two constraints apply to that choice:
- The cluster picker only offers clusters on which this tenant does not already have a vDC. Once the tenant holds one on every available cluster, the dialog says so instead of offering an empty list.
- Only clusters that are still in the provider pool can be sliced. A connection owned by an MSP tenant is not offered, because a cluster is either handed over whole to an MSP tenant or shared through vDCs, never both.
The vDC Name is optional. Left empty, it is derived from the tenant and cluster names. The slug is derived from the same pair and is not typed by hand. Each vDC keeps its own slug, its own PVE pool, its own quotas, its own networks, and its own backup binding, so the vDCs of one tenant stay independent of each other.
The effective ceiling is therefore the number of provider-pool clusters. There is no numeric or licence cap on the number of vDCs a tenant may hold.
A tenant with a single vDC behaves exactly as it did before. Everything described in the next section appears only from the second vDC onward.
Switching Between vDCs
A tenant that owns several vDCs gets a vDC switcher in the top navigation bar. It lists:
- All vDCs, the aggregated view over every vDC of the tenant. This is the default.
- One entry per enabled vDC.
Picking an entry sets the vDC context for the whole interface and reloads it. The context is kept in a browser cookie, so it survives navigation, reloads, and new tabs until it is changed back. All vDCs clears it.
The switcher is shown only to vDC (IaaS) tenants with at least two enabled vDCs. It is absent from the provider view and from MSP tenants, and a tenant with a single vDC does not get it either. A provider administrator who is also a member of a vDC tenant does see it once they switch into that tenant, because the decision follows the active tenant, not the account's role.
Once a vDC is selected, the server narrows the following to that vDC alone:
| Area | Narrowed to the selected vDC |
|---|---|
| Inventory | The tree roots, the guest list, and the network and backup sections |
| Guests | VM and container lists, which also carry a vDC column and a vDC chip on the detail view |
| Backups | PBS archives, datastores, PBS jobs, and backup trends |
| Operations | Alerts, changes, running tasks, orchestrator jobs, and rolling updates |
| Deploy and restore | The default target vDC in the deployment wizard and in the tenant restore dialog |
| My vDC | Opens directly on that vDC's dashboard instead of the vDC list |
The vDC context is a view filter, not a permission boundary. Authorization still evaluates the union of every vDC the user is entitled to, so narrowing the view neither grants nor removes any right. A context pointing at a vDC that has since been disabled or deleted silently falls back to All vDCs.
Because the context only shapes lists, a direct link to a single object keeps working while a different vDC is selected: opening a connection, an alert, or a guest's backups resolves against the tenant's full set of vDCs. Read-only API tokens ignore the context entirely and always answer with the tenant's full scope.
While a single vDC is selected, the per-vDC affordances that only make sense in the aggregated view are hidden: the vDC column in the guest lists, the per-vDC grouping in the inventory tree, and the vDC selector in the deploy and restore dialogs. The header switcher is then the single control over context.
When a tenant has more than one vDC, My vDC opens on one card per vDC, with that vDC's node, storage, and quota summary. Clicking a card selects it as the context, exactly like using the switcher in the header.

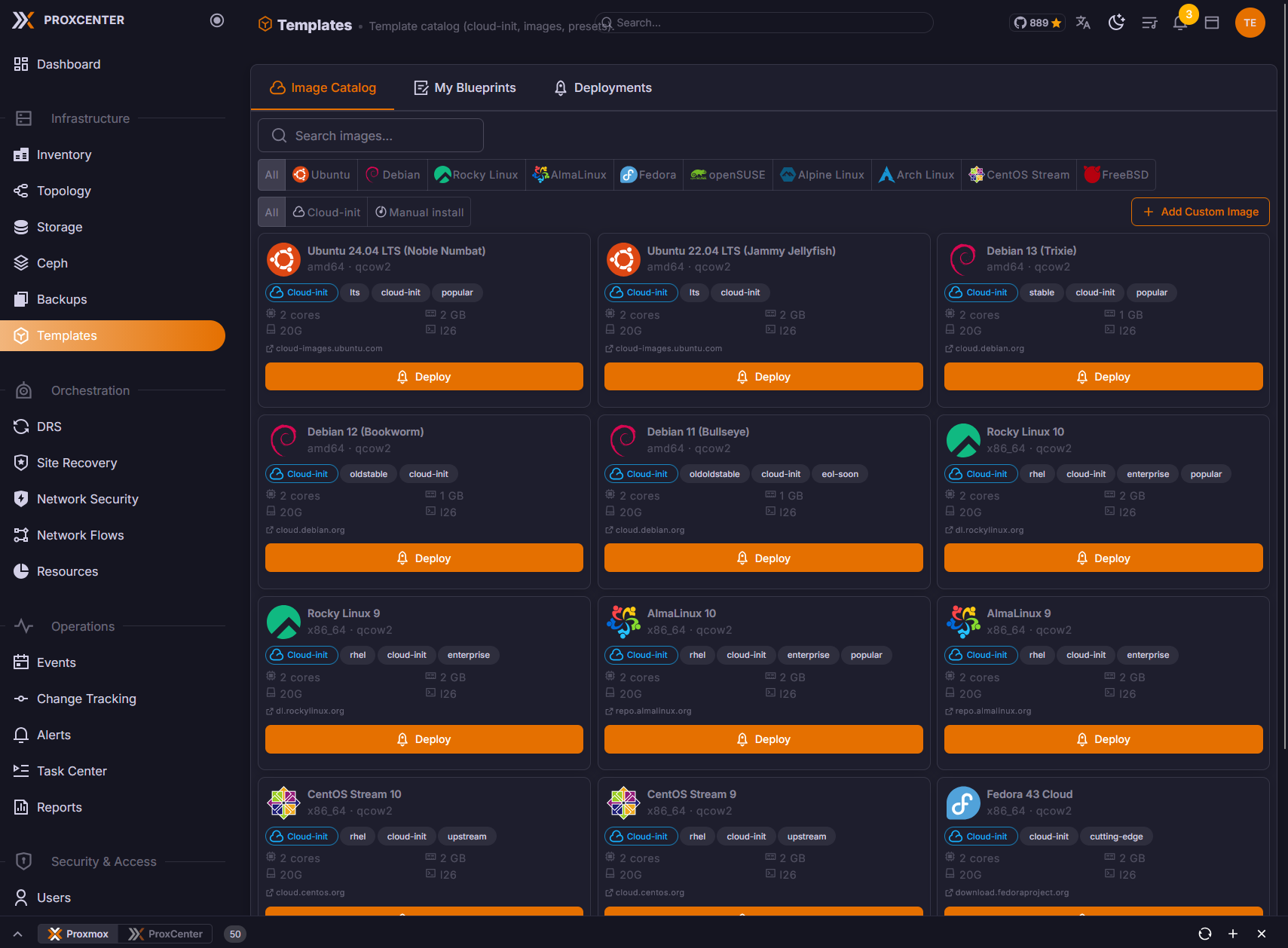

Self-Service Deployment
Tenant users can deploy workloads from a guided wizard. Supported sources include:
- VM templates
- ISO-based installation
- Clone from an allowed source VM or template
- Restore from a tenant-visible PBS backup
Every deployment step is validated server-side. ProxCenter rejects resources outside the tenant's vDC, including foreign storages, nodes, bridges, VNets, subnets, pools, and backup namespaces. Quotas are enforced before the request is sent to Proxmox.
Storage Policies and QoS Tiers
A storage policy is a named QoS profile the provider declares on one storage of one cluster. It carries up to four caps -- read IOPS, write IOPS, read MBps, write MBps -- and a vDC attaches it with a quota of its own, which turns the storage into a sellable tier. Policies are managed from Settings > Virtual Datacenters > Storage policies, with one card per Proxmox connection. (Enterprise)
Declaring a policy
Open the card of the cluster that owns the storage and use the + button:
- Name, unique on that cluster, up to 64 characters.
- Storage. The picker only offers storages that can back a vDC disk: shared, enabled, and advertising
imagesorrootdircontent. The choice is re-validated against the cluster when you save. - IOPS (read), IOPS (write), MBps (read), MBps (write). Each is a positive integer, and an empty field means no limit on that axis. The table renders an empty cap as Unlimited.
- An optional Description.
| Rule | Detail |
|---|---|
| One policy per storage | A storage carries at most one policy per cluster, because the tier quota is metered per storage. The picker greys out a storage that is already governed and names the policy holding it |
| Shared storage only | A local storage is refused: a guest that lands on one cannot live-migrate, which breaks the placement promise of a vDC |
| Provider-pool clusters only | A cluster handed over whole to an MSP tenant cannot carry a storage policy. Declare policies on the clusters you slice through vDCs |
| Storage frozen once assigned | While at least one vDC has the policy attached, the Storage field is locked. Changing it would silently drop the old storage out of every assigned vDC's allow-list. Cap edits stay available |
| Delete blocked while assigned | Deleting a policy that a vDC still uses is refused, and the delete button carries the number of vDCs holding it |
The Storage policies view lists a card for every Proxmox connection, including clusters owned by an MSP tenant. Those clusters cannot carry a policy, and a create attempted there fails with a server error rather than a clear message. Only declare policies on clusters you slice through vDCs.
Attaching a policy to a vDC
In the vDC dialog, the Storage policies section lists the attachments. Attach a policy adds a row: pick the policy, then optionally a Quota (GB) for that tier. Leave the quota empty and the tier only stamps its caps, with consumption still counted by the vDC's global storage quota.
Detaching is guarded: if the vDC still holds volumes on that policy's storage, the save is refused and the message names the VMIDs concerned. When the cluster cannot be reached, the check is skipped rather than blocking the edit, so an unreachable cluster never locks the provider out of the vDC form.
The vDC list carries a Storage policies column showing, per attachment, the policy name, its storage, and its quota.
What the caps apply to
Caps are stamped on the disk line itself, so Proxmox enforces them. They are written on every path a vDC tenant uses to put a VM disk on a governed storage:
| Operation | Caps stamped |
|---|---|
| Creating a VM | Yes, on save |
| Adding, editing, or importing a disk from the guest Hardware tab | Yes, on save. An import-from disk is stamped like any other |
| Deploying from the templates wizard | Yes, on the boot disk |
| Cloning a guest | Yes, once the clone task finishes |
| Restoring a backup | Yes, once the restore task finishes |
| Rolling back a snapshot | Yes, once the rollback task finishes |
| Moving a disk to another storage | Yes, with the target storage's caps, once the move finishes |
Stamping applies to QEMU VM data disks (scsiN, virtioN, ideN, sataN) belonging to a vDC (IaaS) tenant. Containers are not stamped: an LXC mount point uses a different config shape and carries no QoS options. EFI and TPM state disks are validated against the vDC's allowed storages but take no caps. Guests of the provider tenant and of MSP tenants are never touched.
Any bandwidth or IOPS option the tenant sets by hand is stripped and replaced by the policy's values on every save, so a tenant cannot buy a slow tier and raise its own ceiling. The Edit disk dialog reflects that: on a governed storage a line names the policy that owns the caps, and the four bandwidth fields below it are read-only, prefilled with the policy's values.
The tier quota and how usage is measured
Per-tier usage is read from the storage's own content listing, restricted to the guests in the vDC's Proxmox pool. That is what PVE actually allocated, not what the tenant declared, so an import-from allocation costs its real source size rather than the token size typed in the form.
The tier quota is enforced server-side before the request reaches Proxmox on: creating a guest, adding a disk, resizing a disk, moving a disk onto the tier, cloning, and deploying from the templates wizard. A restore is not metered against the quota, although its disks are still stamped with the tier caps.
Tenants see the tier two ways:
- My vDC adds a Storage tiers block under the quota donuts, with one bar per attached policy that carries a quota. The bar turns red past 90 %, and a tier already over its quota is flagged with a warning icon next to the used / quota figures.
- The templates deploy wizard adds a fifth donut for the tier of the selected storage and blocks Next while the projected disk would overflow it, instead of letting the deployment fail on its last step.
The Create VM and Create Container dialogs show the four global quota donuts but not the tier axis. A request that would overflow a tier is still refused by the server, with the policy name and the used / quota figures in the error.
Bringing existing disks under a policy
Saving a policy after changing one of the four caps re-stamps every existing disk on that storage, across every VM of every vDC the policy is attached to. The dialog switches to a progress view for the duration: a live counter of VMs processed, one line per VM with the disk keys that changed, and a closing summary of disks updated, unchanged, and in error. Close stays disabled until the run ends.
Two limits are worth knowing before you plan a migration onto tiers:
- The run is triggered by a cap change only. Creating a policy, attaching an existing one to a new vDC, or saving a rename does not visit any disk.
- Only QEMU VMs in the pools of the vDCs the policy is attached to are visited. A policy attached to no vDC has nothing to re-stamp.
Governed disks and drift
Expanding a policy row lists every VM that currently holds a disk on that storage, with one chip per disk in the form scsi1 · 100/100 · 10/10M: the disk key, then read/write IOPS, then read/write MBps. A missing cap renders as a dash.
A chip in warning colour means the disk has drifted: its live caps no longer match the policy. That happens when a cap was changed while a VM could not be reached, or when someone edited the drive line straight in Proxmox. Drift is cleared by the next re-stamp run, which only a cap change triggers. The list is fetched when the row is first expanded and refreshed after a run, and a VM whose config could not be read is shown as an error rather than dropped.

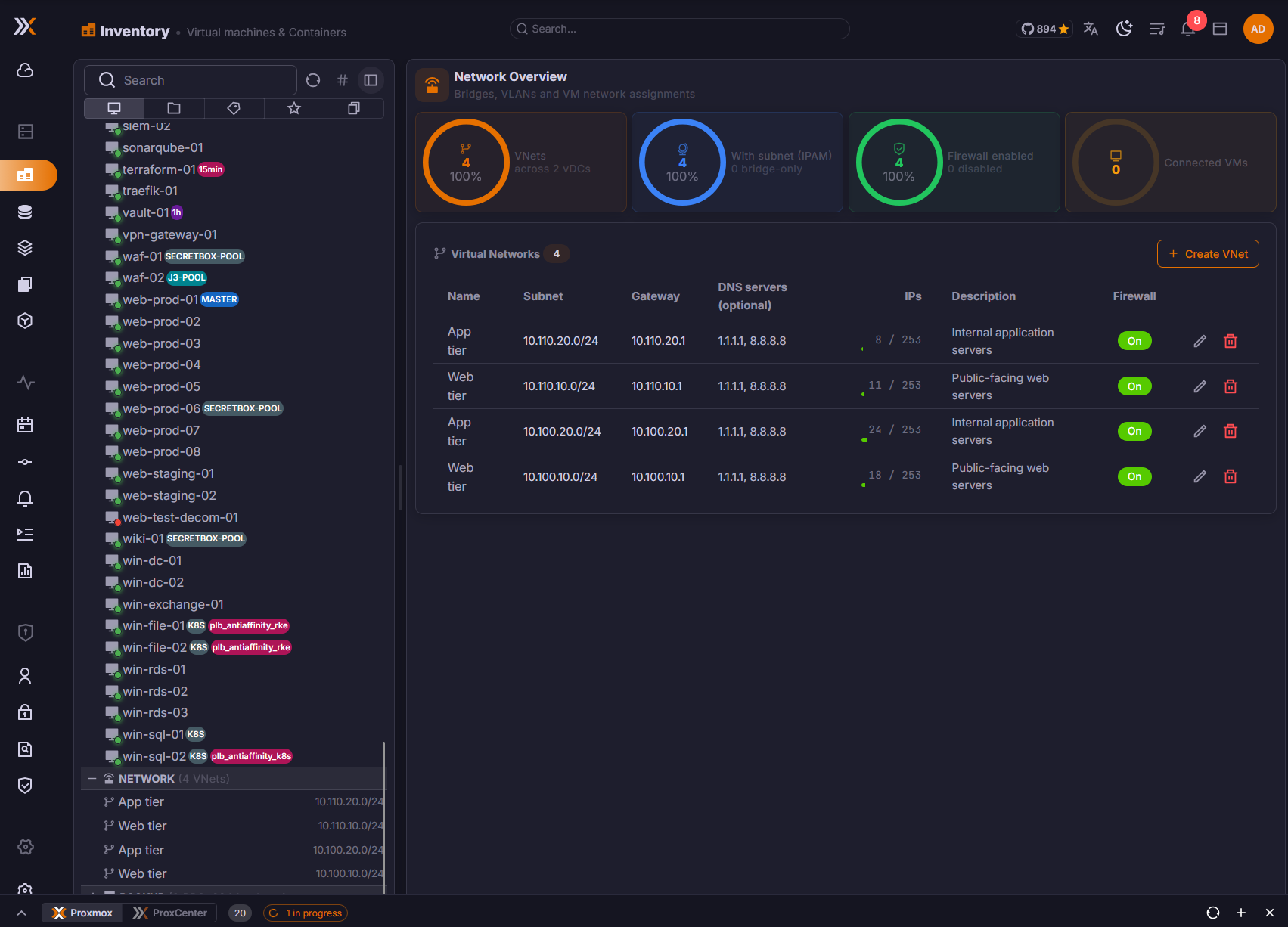

Network and IPAM
Each vDC can receive dedicated SDN VNets and subnets. ProxCenter tracks IP and MAC reservations so tenant deployments remain consistent even when VMs are cloned, restored, or edited later. A vDC that also holds VLAN pools lets its users build VLAN-backed networks themselves, described in Tenant VLAN Networks below.
IPAM handles:
- Automatic IP reservation during deployment
- Automatic MAC reservation for new network interfaces
- Reservation updates when VM network configuration changes
- Reconciliation when a VM is created externally in the tenant's Proxmox pool
A network created with Addressing managed outside ProxCenter is deliberately left out of IPAM: its CIDR and gateway stay documentation, and no address is reserved or handed out at deploy time.
If operators create or move VMs directly in Proxmox, make sure the VM is placed in the correct tenant pool. ProxCenter reconciles tenant pool membership, but resources outside the pool remain outside the tenant vDC.
Tenant VLAN Networks
By default a vDC's networks are VXLAN: the vDC owns an SDN zone and ProxCenter allocates the VNI. A provider can additionally dedicate one or more VLAN pools to a vDC, after which the tenant builds VLAN-backed networks itself, self-service, with the tag taken from its own ranges. (Enterprise)
Dedicating VLAN pools (provider)
In Settings > Virtual Datacenters, edit the vDC and use the VLAN pools section. A range is a Bridge, a First VLAN ID, and a Last VLAN ID; the + button on the section header adds another.
| Rule | Detail |
|---|---|
| Bridges offered | The cluster's physical bridges, Linux and OVS alike, deduplicated across nodes. SDN VNet names are excluded; a bridge already used as the uplink of an SDN zone stays available for pools |
| VLAN awareness | A bridge that does not report VLAN awareness is still selectable, with a warning under the field that tagged traffic may not pass. Fix it on the Proxmox side before handing the range to a customer |
| Bounds | 1 to 4094. Proxmox itself accepts higher values, but 0 and 4095 are reserved by 802.1Q, so ProxCenter stops at 4094. The first ID must be lower than or equal to the last |
| No overlap | Two ranges of the same vDC may not overlap on the same bridge, and neither may a range of another vDC on the same cluster and bridge. The error names the other vDC and its range |
| No unsafe shrink | A range cannot be narrowed below a VLAN network that already uses a tag inside it. The error names the network and the tag it holds |
Creating a VLAN network (tenant)
Tenant users create networks from Infrastructure > Inventory, in the Network view, from the Virtual Networks card and its Create VNet button.
- The Network type selector only appears when the selected vDC carries at least one VLAN pool. Without a pool the dialog behaves exactly as before and creates a VXLAN network.
- Choosing VLAN adds a Bridge picker, limited to the bridges this vDC has a pool on, and a VLAN ID field. A single bridge in the pools is selected implicitly.
- Leave VLAN ID empty and ProxCenter assigns the lowest free tag in the vDC's ranges for that bridge. The helper text spells out the ranges available.
- A tag typed outside those ranges is refused, and so is a tag already carried on that bridge, whether by another vDC's network or by a zone the provider built directly in Proxmox.
- Freed tags are reused. Unlike VXLAN VNIs, VLAN tags are a scarce, provider-bounded resource.
- A subnet with a CIDR and a gateway is mandatory on both network types. The gateway is prefilled with the first usable host of the CIDR.
The Addressing managed outside ProxCenter checkbox is offered on VLAN networks only. Ticked, the subnet stays declarative: IPAM hands out no address at deploy time and the tenant runs its own DHCP or a static plan. It is not offered on a VXLAN overlay, where ProxCenter's IPAM is the only allocator that works, so opting out would leave the network with none at all.
How VLAN networks sit on the cluster
- All VLAN networks of a cluster share one provider-owned SDN zone per bridge, created automatically the first time a tenant asks for a VLAN network on that bridge. Its name is derived from the connection and the bridge, so concurrent creations converge on the same zone.
- That shared zone is the L2 backstop: Proxmox enforces tag uniqueness inside a zone, so two vDCs racing for the same tag end in a Proxmox error rather than a shared broadcast domain.
- Deleting a vDC deletes its own networks and its own VXLAN zone. The shared VLAN zones are kept, since other vDCs may still use them and an empty zone costs nothing.
- VXLAN VNIs are allocated from 10000 upward, cluster-wide. A VLAN tag never reaches that floor, so a tag and a VNI cannot collide on the same cluster.
Tagging a shared bridge directly
A VLAN pool also widens what a tenant may write in a guest NIC. On a bridge the vDC already receives as a shared bridge, a NIC may carry tag= or trunks= values that fall inside the vDC's pools for that bridge; anything outside is refused. A pool on its own never opens a bridge the vDC does not already share, and a tag on an SDN VNet is refused outright because the VNet already carries its own.
See Network Security for the full list of checks and where they run.
Backup Isolation
Each vDC can be bound to its own Proxmox Backup Server namespace. In automatic mode, ProxCenter provisions the namespace, sub-token, ACL, and PVE storage target. Manual mode is available for operators who prefer to pre-create PBS objects or enforce stricter naming policies.
Tenant users can:
- View backups from their own PBS namespace
- Create PVE backup jobs constrained to their vDC pool
- Use a structured schedule picker for recurring jobs
- Verify and delete allowed backups
- Restore over the source VM or restore as a new VM in their vDC
Tenant Isolation
vDC scoping applies across the MSP feature set:
- Inventory shows only tenant-owned resources
- PBS backups are filtered to the tenant namespace
- PVE backup jobs are constrained to the tenant pool
- Events, tasks, alerts, and reports respect tenant boundaries
- Provider administrators can still see and operate across tenants from the provider view
Tenant users with no assigned vDC do not inherit provider visibility. They see only the features and resources explicitly granted to them.
